SEALEVEL | SeaIO

SeaI/O-530N-OEM

Now includes NABL Calibration Certificate.
Rs. 50419.00

The SeaI/O-530N-OEM is an RS-485 Modbus RTU expansion module that adds 16 optically isolated inputs and 16 open-collector outputs to your SeaI/O network..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The SeaI/O-530N-OEM is designed to easily add 16 optically isolated inputs and 16 open-collector outputs to your existing RS-485 network. It's perfect for interfacing with high-current devices and sensitive equipment requiring isolation. The open-collector outputs can handle a wide range of industrial control applications, while the optical isolation ensures the protection of connected devices from ground loops and surges. Integration is simplified with the use of RJ45 connectors and the flexibility of RS-485 communication.

  • Optically Isolated Inputs – Protects equipment from voltage transients and ground loops.

  • Open-Collector Outputs – 16 open-collector outputs suitable for driving high-current devices.

  • RS-485 Interface – Connects seamlessly to RS-485 networks using Modbus RTU protocol.

  • Expansion Kit – Ships with metal standoffs and optional CA239 interconnect cable for daisy-chaining multiple boards.

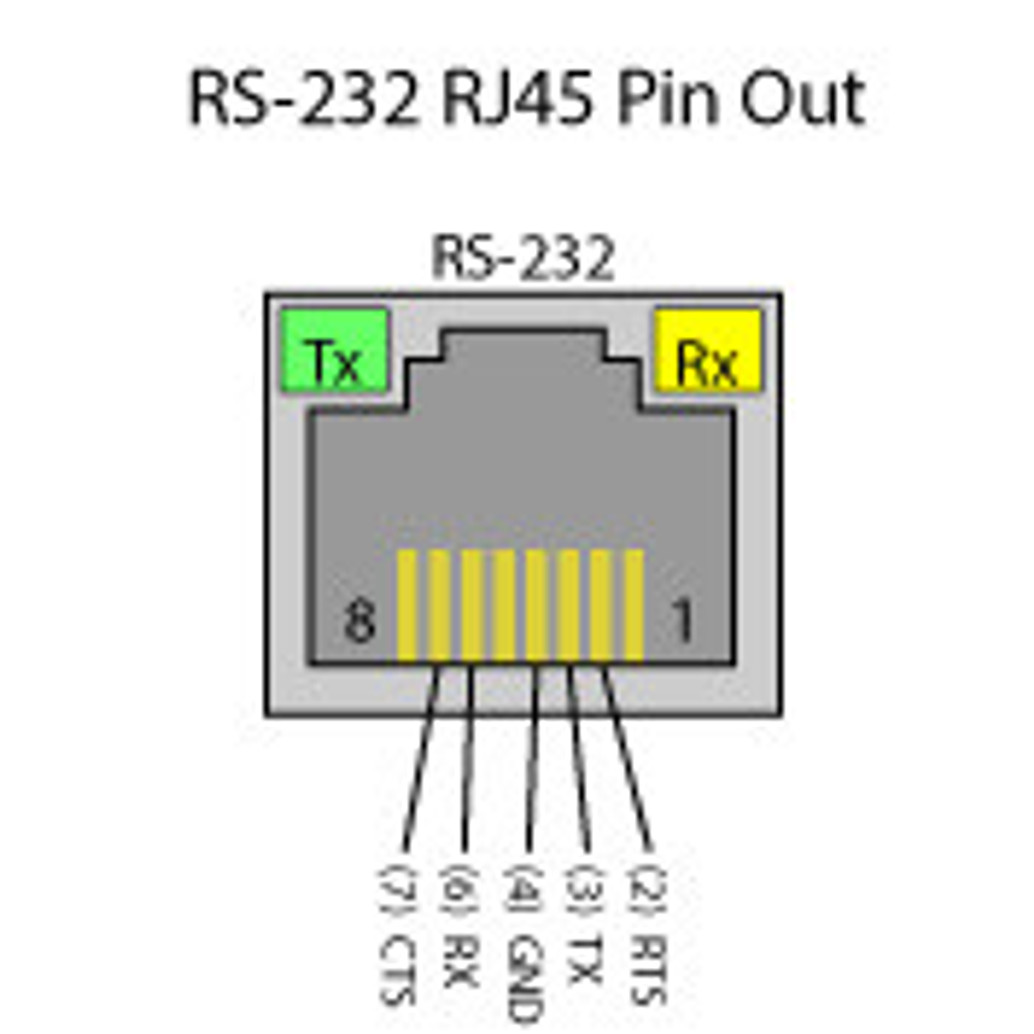

  • Easy Cabling – Flexible cabling options through RJ45 connectors or removable screw terminals.

Parameter Details
Model Number SeaI/O-530N-OEM
Host Interface RS-485
Power Requirement 9-30 VDC @ 3.4W
Operating Temperature -25°C to 85°C (-13°F to 185°F)
Storage Temperature -50°C to 105°C (-58°F to 221°F)
Dimensions 7.5 (L) x 5.0 (W) x 0.8 (H)
Humidity Range 10-90% Relative Humidity/Non-Condensing
Number of Inputs 16
Input Type Optically Isolated Inputs
Number of Outputs 16
Output Type Open-Collector Outputs
Mounting Board only
